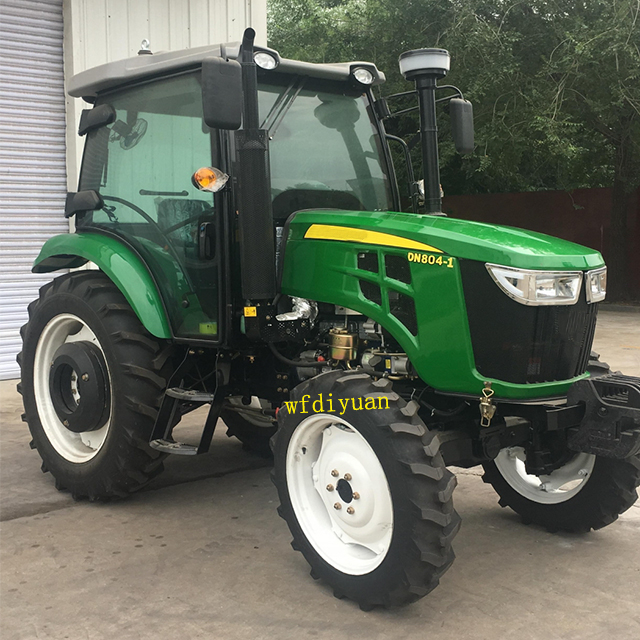

DY804-1 80HP 4WD Wheeled Tractor for Agricultural Farming
| Item | Specification |
|---|---|
| Model | DY804-1 |
| Type | Wheeled Tractor |
| Drive Type | Four-wheel drive |
| Power | 80 HP |
| Engine Model | YN4EZ080-30CR |
| Engine Power | 58.8 kW |
| Engine Manufacturer | Kunming Yunnei Power Co.,Ltd |
| Engine Type | 4-cylinder, direct injection, water-cooled, four-stroke diesel engine |
| Rated Speed | 2400 r/min |
| Transmission Type | Mechanical transmission |
| Gear | 8 Forward + 2 Reverse |
| Main Gear Shifts | 4 + 1 |
| Secondary Gear Shifts | 2 |
| Maximum Speed | 31.61 km/h |
| PTO Splines | 8 |
| PTO Speed | 540/760 r/min |
| Hydraulic Pump Model | CBN-F320 |
| Hydraulic Output Groups | 2 sets |
| Hydraulic Safety Valve Pressure | 18 ± 0.5 MPa |
| Steering System | Full hydraulic steering |
| Suspension Type | Rear three-point suspension |
| Suspension Category | Category II |
| Front Tire | 8.3-24 |
| Rear Tire | 14.9-30 |
| Tire Quantity | 2 + 2 |
| Wheelbase | 2050 mm |
| Wheel Gauge | 1200/1300/1400 mm |
| Overall Dimensions | 3910×1700×2450 mm |
| Minimum Ground Clearance | 430 mm |
| Service Mass | 2320 kg |
| Standard Counterweight (Front/Rear) | 80/120 kg |
| Safety Frame Model | DY804.46.001 |
| Optional Cab Model | DY904.45.001 |
| Application | General agricultural operations |
The DY804-1 80HP four-wheel drive wheeled tractor is designed for medium-scale agricultural operations with strong traction and reliable performance. Equipped with a 4-cylinder diesel engine, full hydraulic steering system, mechanical transmission, and rear three-point suspension, it provides efficient operation and easy control.
The tractor features an 8 forward and 2 reverse gear transmission system, 540/760 rpm PTO output, and hydraulic outputs for connecting various agricultural implements. With its four-wheel drive structure and durable chassis design, the DY804-1 is suitable for plowing, rotary tilling, transportation, planting, and other farming applications.

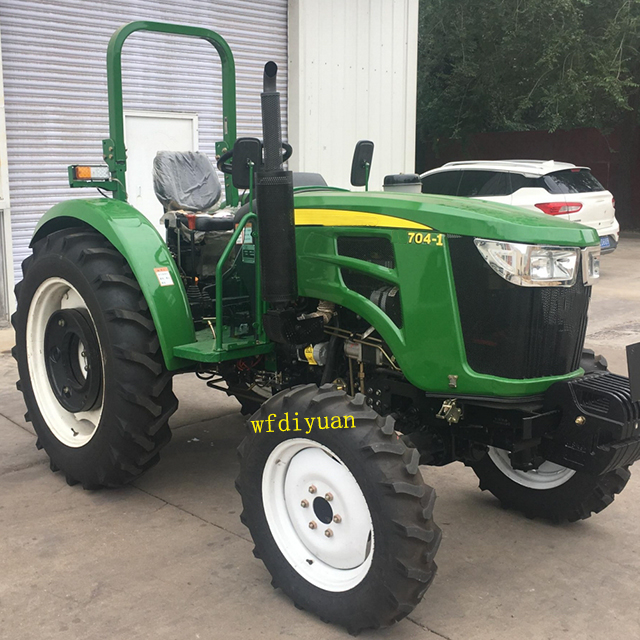

The tractor can be configured with safety frame or optional cab according to different working environments and customer requirements.
China Weifang Diyuan Machinery Technology Co., LTD specializes in supplying agricultural tractors and tractor spare parts for global markets. We provide reliable Chinese agricultural machinery solutions, including 4WD tractors, tractor implements, and replacement parts. With professional export experience and technical support, we help overseas customers select suitable tractor models and configurations.
