描述
| item | unit | Design value |
| Power code (horsepower) | / | 70 |

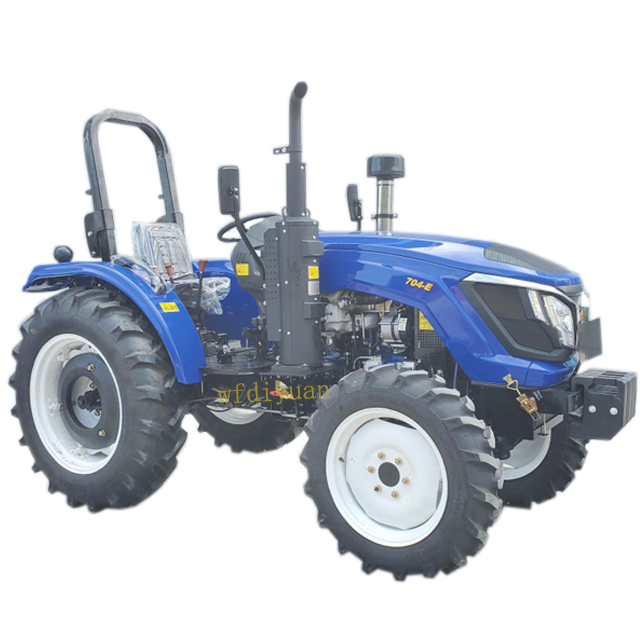

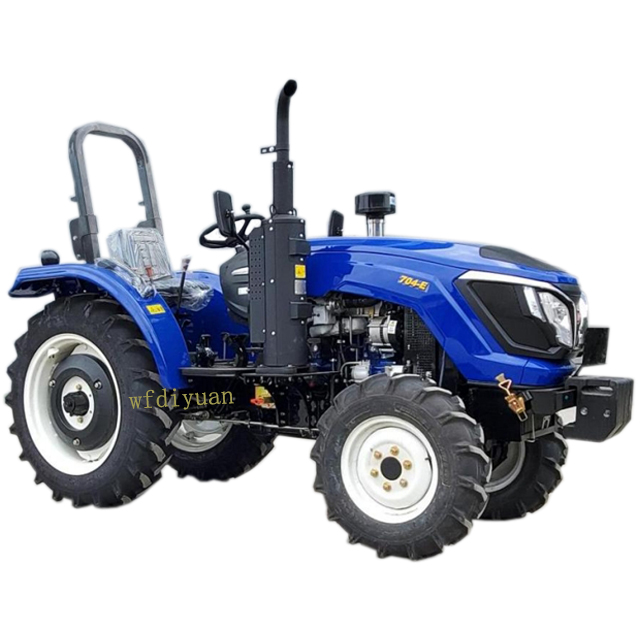

| Machine model and name | / | 704-E, wheeled tractor |
| Overall type | / | Wheel type |
| Machine frame type | / | frameless |
| Overall drive type | / | Four-wheel drive |
| Application of the whole machine | / | General purpose |
| Overall dimensions (length × width × height and position) | mm | 3550×1580×2330 (top of safety shelf) |
| wheelbase | mm | 1905 |
| Common wheel base (front/rear) | mm | 1300/1300 |
| Wheel base (front/rear) | mm | 1200, 1300, 1400, 1500/1200 ~ 1500 |
| Minimum ground clearance and position | mm | 410(bottom rear axle) |
| The horizontal distance between the front end face of the clutch housing and the axis line of the rear drive shaft | mm | 1070 |
| Transmission gear pair shaft hole center distance | mm | 80.5 |
| The horizontal distance between the axis line of the drive wheel and the axis line of the guide wheel of the full track tractor | mm | / |
| Minimum service mass | kg | 2040 |
| Standard counterweight (front/rear) | kg | 44/54 |
| Specific ground pressure of track | kPa | / |
| Minimum use ratio mass | kg/kW | 39.61 |
| Gear (forward/backward) | / | 8 + 2 |
| Number of main gear shifts | / | 4 + 1 |
| Number of sub shift gears | / | 2 |
| Maximum theoretical design speed | km/h | 38.19 |
| Engine and main clutch connection mode | / | Direct connection |
| Rollover protection (cab or safety frame) model | / | BY-001K |
| Type of tip guard (cab or safety frame) | / | Security framework |
| Plant for production of tip protection devices (cab or safety frame) | / | China |
| Engine type | / | YN28TDF4(Country IV) |
| Engine structure type | / | In-line, four-stroke, liquid-cooled |
| Engine plant | / | Shandong Yunnei power Co., LTD |
| Engine intake mode | / | supercharge |
| Engine cylinder count | / | 4 |
| Engine rated power | kW | 51.5 |
| Net engine power rating | kW | 51.5 |
| Nominal engine speed | r/min | 2400 |
| Engine cooling mode | / | water-cooling |
| Air filter model | / | YKQ2027U5 |
| Air filter type | / | dry-type |
| Exhaust pipe muffler dimensions (length × width × thickness or diameter × length) | mm | 660 * 260 * 200 |
| Exhaust pipe muffler quality | kg | 25 |
| Driver seat model | / | SMT-CS06-1 |
| Driver seat manufacturing plant | / | China |
| Seat belt model | / | DC-1000-006 |
| Seat belt factory | / | China |
| Steering system type | / | Full hydraulic |
| Steering system steering control mechanism | / | Steering wheel |
| Steering system steering mechanism type | / | Front steering |
| Number of transmission system boxes | a | 2 |
| Transmission type | / | Mechanical plane composition |
| Main shift position | / | In box 2 |
| Main shift mode | / | The machine has stage gear |
| Secondary gear shift mode | / | The machine has stage gear |
| Tire type (front/rear) | / | 8.3-20/12.4-28 |
| Number of tires (front/rear) | a | 2 + 2 |
| Track material | / | / |
| Track plate width | mm | / |
| Type of hydraulic suspension system | / | Separate type |
| Suspension type | / | Rear three-point suspension |
| Suspension class | / | The second kind |
| Working device hydraulic oil pump model | / | CBN-E316 |
| Number of hydraulic output groups | / | 2 |
| Working device safety valve full open pressure | MPa | 18 + / – 0.5 |
| Number of splines of power output shaft | / | 6 |
| Standard speed of power output shaft | r/min | 540/720 |

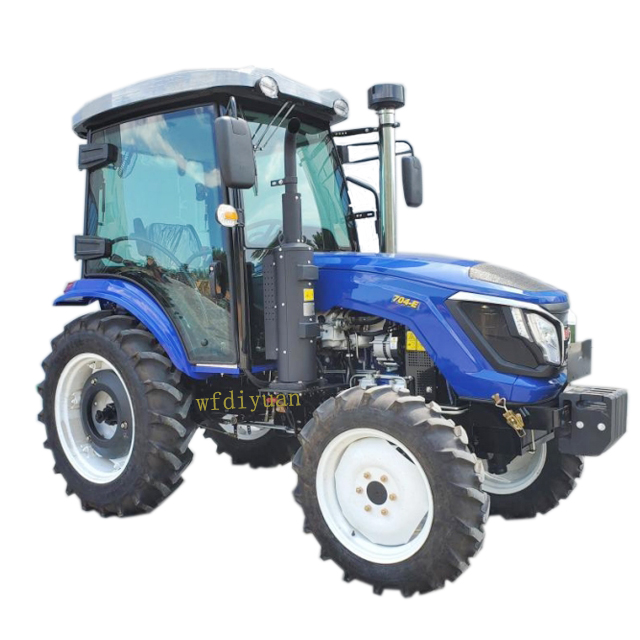

| Optional configuration simple cab model | / | BY-004J |
| Optional configuration simple cab type | / | Simple cab |
| Optional configuration simple cab production plant | / | China |
| Optional configuration Simple cab exterior dimension (length × width × height and position) | mm | 3550×1540×2480 (cab roof) |
| Optional configuration simple cab minimum service quality | kg | 2050 |
| Optional Configuration Simple cab Standard weight (front/rear) | kg | 44/54 |
| Optional configuration simple cab track ground pressure | kPa | / |
| Optional configuration simple cab minimum service ratio mass | kg/kW | 39.81 |
| Optional configuration security frame model | / | BY-001Z |
| Optional configuration security framework type | / | Security framework |
| Optional configuration security framework production plant | / | China |
| Optional configuration safety frame dimensions (length × width × height and position) | mm | 3550×1465×2330 (safety frame top) |
| Optional configuration Safety frame Common wheel base (front/rear) | mm | 1100/1100 |
| Wheel base (front/rear) | mm | 960, 1000, 1100, 1150/960 ~ 1150 |
| Optional configuration security framework minimum quality of use | kg | 2040 |
| Optional configuration Safety frame Standard weight (front/rear) | kg | 44/54 |
| Optional configuration safety frame track ground pressure | kPa | / |
| Optional configuration security framework minimum usage ratio mass | kg/kW | 39.61 |
| Optional configuration Tyre type (rear wheel) | / | 11.2-24, 11.2-28, 11-28, 12.4-24, 11.2-24 (paddy field), 12.4-28 (paddy field) |
