描述
| item | unit | Design value |
| Power code (horsepower) | / | 50 |

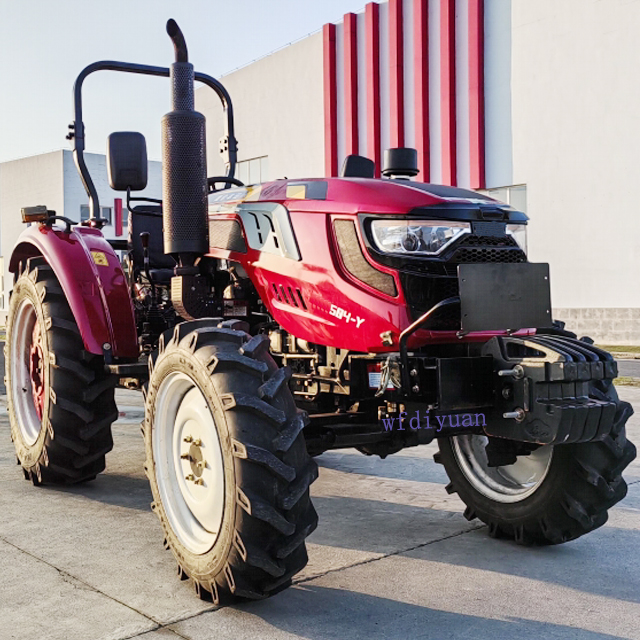

| Machine model and name | / | DY504-Y wheeled tractor |
| Overall type | / | Wheel type |
| Machine frame type | / | frameless |
| Overall driving form | / | Four-wheel drive |
| Application of the whole machine | / | General purpose |
| Overall dimensions (length × width × height and position) | mm | 3620×1640×2315 (top of safety rack) |
| Wheelbase or track ground length | mm | 1820 |
| Commonly used wheel gauge (front/rear) or gauge | mm | 1200/1300 |
| Wheel gauge (front/rear) or gauge | mm | 870, 960, 1000, 1100, 1200, 1300/870-1300 |
| Minimum ground clearance and position | mm | 365 (lower end of front axle oil plug) |
| The horizontal distance between the front end face of the clutch housing and the axis line of the rear drive shaft | mm | 1027 |
| Transmission gear pair shaft hole center distance | mm | 80.5 |
| The horizontal distance between the axis line of the drive wheel and the axis line of the guide wheel of the full track tractor | mm | / |
| Minimum service mass | kg | 1665 |
| Standard counterweight (front/rear) | kg | 60/90 |
| Specific ground pressure of track | kPa | / |
| Minimum use ratio mass | kg/kW | 45.2 |
| Gear (forward/backward) | / | 8 + 2 |
| Number of main gear shifts | / | 4 + 1 |
| Number of sub shift gears | / | 2 |
| Maximum theoretical design speed | km/h | 32.35 |
| Engine and main clutch connection mode | / | Direct connection |
| Rollover protection (cab or safety frame) model | / | AH704.46.001 |
| Type of tip guard (cab or safety frame) | / | Security framework |
| Plant for production of tip protection devices (cab or safety frame) | / | China |
| Engine type | / | 4DW91-50GBG42 (National IV) |
| Engine structure type | / | Vertical, in-line, water-cooled, four-stroke |
| Engine plant | / | Faw Jiefang Automobile Co., Ltd. Wuxi diesel engine factory |
| Engine intake mode | / | Natural aspiration |
| Engine cylinder count | / | 4 |
| Engine rated power | kW | 36.8 |
| Net engine power rating | kW | 36.8 |
| Nominal engine speed | r/min | 2400 |
| Engine cooling mode | / | water-cooling |
| Air filter model | / | KLQ-300P |
| Air filter type | / | dry-type |
| Exhaust pipe muffler dimensions | mm | Φ 123 x 530 |
| Exhaust pipe muffler quality | kg | 4.6 |
| Driver seat model | / | 628 |
| Driver seat manufacturing plant | / | China |
| Seat belt model | / | JD-B021 |
| Seat belt factory | / | China |
| Steering system type | / | Full hydraulic |
| Steering system steering control mechanism | / | Steering wheel |
| Steering system steering mechanism type | / | Front steering |
| Number of driveshains, type of gearbox | / | Number of boxes: 2, mechanical plane composition |
| Main shift position and shift mode | / | Main shift position: In the second box, the machine has stage gear |
| Secondary gear shift mode | / | The machine has stage gear |
| Tire type (front/rear) | / | 8.3-20/12.4-28 |
| Number of tires (front/rear) | a | 2 + 2 |
| Track material | / | / |
| Track plate width | mm | / |
| Type of hydraulic suspension system | / | Separate type |
| Suspension type | / | Rear three-point suspension |
| Suspension class | / | Category 1 |
| Working device hydraulic oil pump model | / | CBN-F314 |
| Number of hydraulic output groups | / | A set |
| Working device safety valve full open pressure | MPa | 16 + / – 0.5 |
| Number of splines of power output shaft | / | 6 |
| Standard speed of power output shaft | r/min | 540/760 |
| Optional rollover protection (cab or safety frame) model | / | AH704.45.001 |
| Optional type of tip guard (cab or safety frame) | / | Simple cab |
| Optional tip protection (cab or safety frame) production plant | / | China |
| Optional overturning protection device Outer dimension of the whole machine (length × width × height and position) | mm | 3600×1600×2420 (cab roof) |
| Minimum service mass of optional tip guard | kg | 1870 |
| Minimum service specific mass of optional tip guard | kg/kW | 50.8 |
| Optional tire models (front/rear) | / | 5.00-16, 5.50-16, 7.5-16, 6.00-16, 6.50-16/9.5-24, 9.5-28, 11.2-28, 11.2-24, 12.4-24 |
