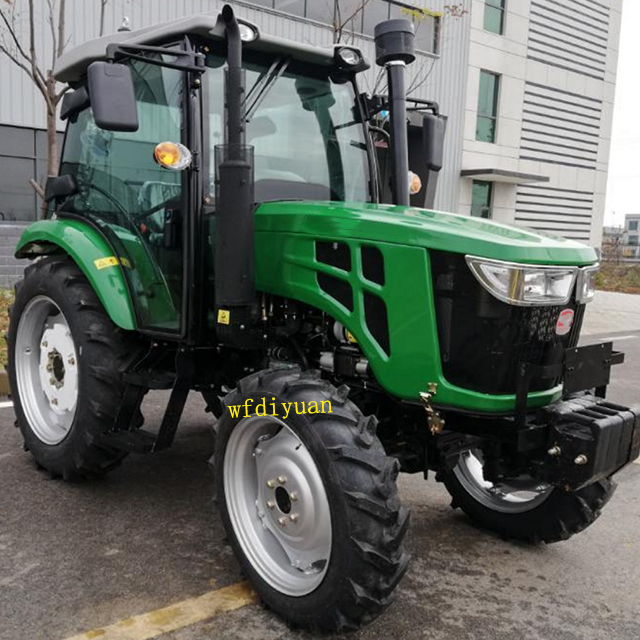

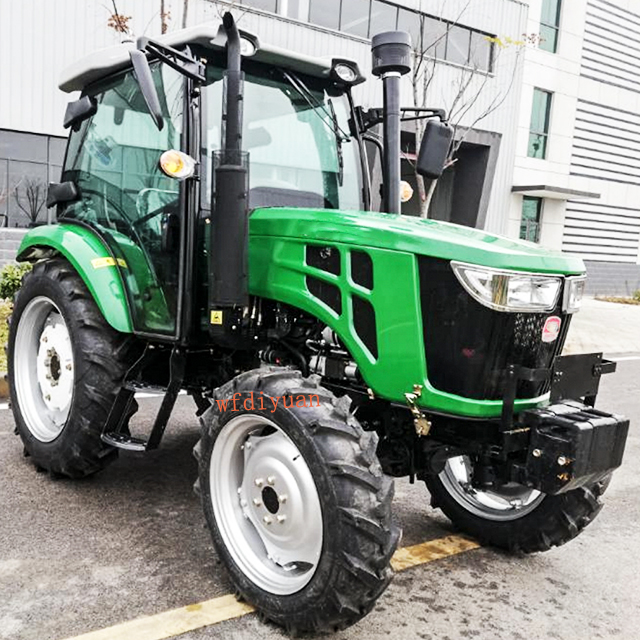

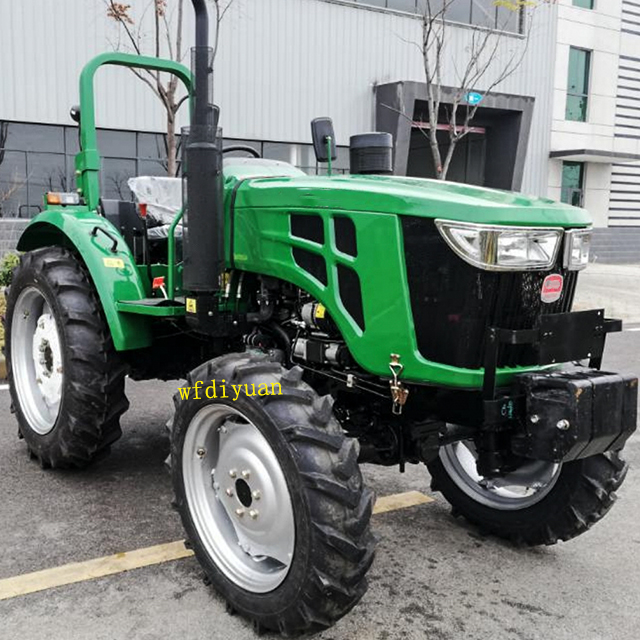

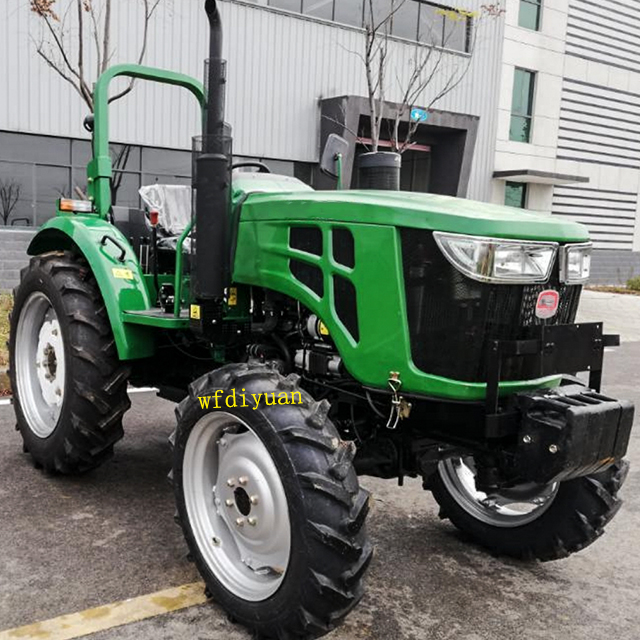

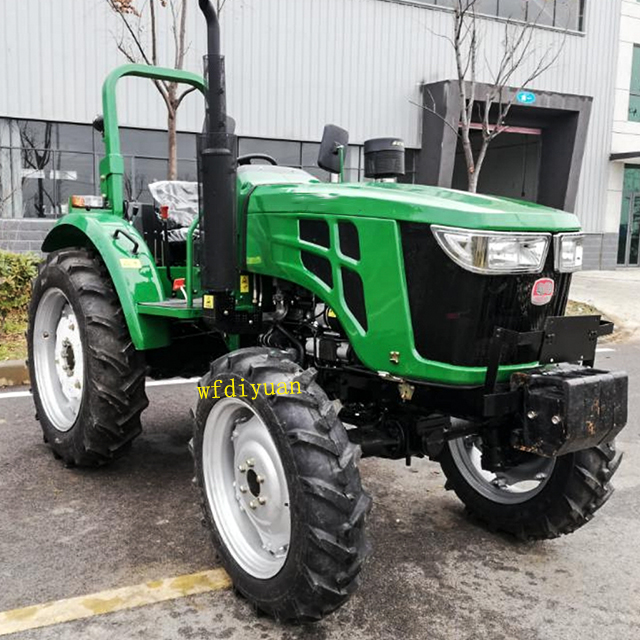

AGRIDISOURCE DY904 90HP 4WD Agricultural Tractor
| Item | Specification |
|---|---|
| Brand | AGRIDISOURCE |
| Model | DY904 |
| Rated Horsepower | 90 HP |
| Drive Type | 4WD |
| Engine Model | 4D32RT30/904 |
| Engine Manufacturer | Zhejiang Xinchai |
| Rated Engine Power | 66.2 kW |
| Engine Type | 4-cylinder, 4-stroke diesel |
| Intake System | Turbocharged and intercooled |
| Cooling System | Water-cooled |
| Rated Engine Speed | 2400 rpm |
| Transmission Gears | 8 Forward + 2 Reverse |
| Maximum Theoretical Speed | 32.34 km/h |
| Front / Rear Tires | 8.3-24 / 11-32 |
| Steering System | Full hydraulic steering |
| Hydraulic Outputs | 2 groups |
| Rear Suspension | Three-point suspension, Category II |
| PTO Speed | 540 / 720 rpm |
| Wheelbase | 1980 mm |
| Minimum Ground Clearance | 400 mm |
| Overall Dimensions | 3775 × 1620 × 2565 mm |
| Service Mass (Safety Frame) | 2550 kg |
| Service Mass (Cab) | 2660 kg |
| Front / Rear Counterweights | 72 / 60 kg |
| Safety Frame / Cab | Safety frame; optional simple cab |
The AGRIDISOURCE DY904 is a 90HP 4WD agricultural tractor powered by a Zhejiang Xinchai 4D32RT30/904 four-cylinder diesel engine rated at 66.2 kW. It features a turbocharged and intercooled, water-cooled engine, an 8-forward and 2-reverse transmission, full hydraulic steering, and two hydraulic output groups. The rear Category II three-point suspension and 540/720 rpm PTO support compatible agricultural implements. Equipped with 8.3-24 front tires and 11-32 rear tires, the DY904 is available with a safety frame or an optional simple cab for general-purpose agricultural operations.
Weifang Diyuan Machinery Technology Co., LTD is a Chinese supplier of agricultural tractors and tractor spare parts. Under the AGRIDISOURCE brand, we provide agricultural machinery solutions for farmers, importers, dealers, and distributors worldwide. Our product range includes 2WD and 4WD agricultural tractors, agricultural implements, and tractor spare parts.
