描述
| Item | Specification |
|---|---|
| Brand | AGRIDISOURCE |
| Model | DY704-N1 |
| Tractor Type | Wheeled Tractor |
| Rated Power | 70 HP |
| Drive Type | 4WD |
| Engine Model | YN4EZ070-32CR |
| Engine Manufacturer | Kunming Yunnei Power Co., Ltd. |
| Engine Rated Power | 51.5 kW |
| Engine Rated Speed | 2300 r/min |
| Engine Type | 4-cylinder, direct injection, water-cooled, 4-stroke diesel |
| Air Intake | Naturally aspirated |
| Transmission | 8 Forward + 2 Reverse |
| Main Gear Shifts | 4 + 1 |
| Sub Gear Shifts | 2 |
| Maximum Theoretical Speed | 33.92 km/h |
| Wheelbase | 1930 mm |
| Overall Dimensions | 3600 × 1650 × 2370 mm (safety frame); 3550 × 1790 × 2550 mm (cab) |
| Minimum Ground Clearance | 405 mm |
| Operating Weight | 1965 kg (safety frame); 2055 kg (cab) |
| Standard Tires | 8.3-20 front / 12.4-28 rear |
| Steering System | Full hydraulic steering |
| Hydraulic System | Separate hydraulic system |
| Hydraulic Output Groups | 2 |
| Rear Suspension | Three-point linkage, Category II |
| PTO Speeds | 540 / 720 rpm |
| PTO Splines | 8 |
| Hydraulic Safety Valve Pressure | 17.5–18.0 MPa |
| Standard Counterweights | 72 kg front / 60 kg rear |
| Optional Cab | Simple cab |
| Optional Tire Sizes | 8.3-24/12.4-28; 8.3-24/11-32; 8.3-20/11-32; 7.50-16/11.2-28 |
The AGRIDISOURCE DY704-N1 is a 70HP 4WD wheeled tractor designed for general agricultural operations. Powered by a 4-cylinder Yunnei diesel engine rated at 51.5 kW, it combines four-wheel drive, full hydraulic steering, and an 8-forward/2-reverse transmission for versatile farm use.
The tractor features a Category II rear three-point linkage, two hydraulic output groups, and selectable PTO speeds of 540/720 rpm. Compatible with suitable agricultural implements, it can support tillage, field preparation, transport, and other routine farm operations.

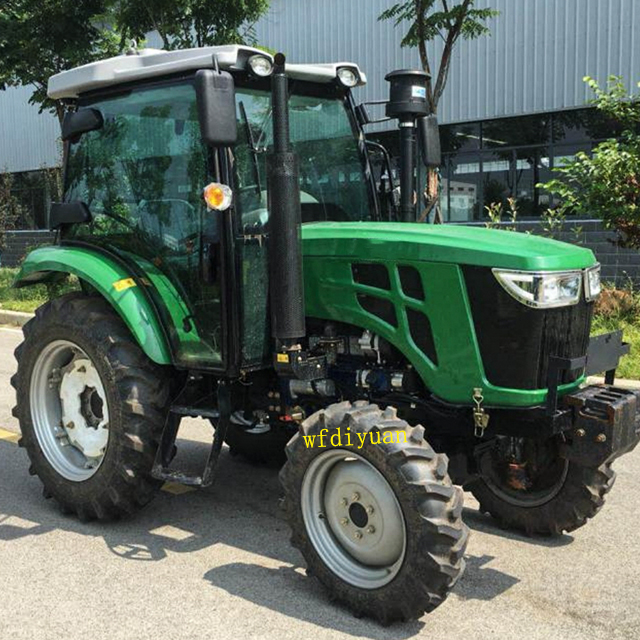

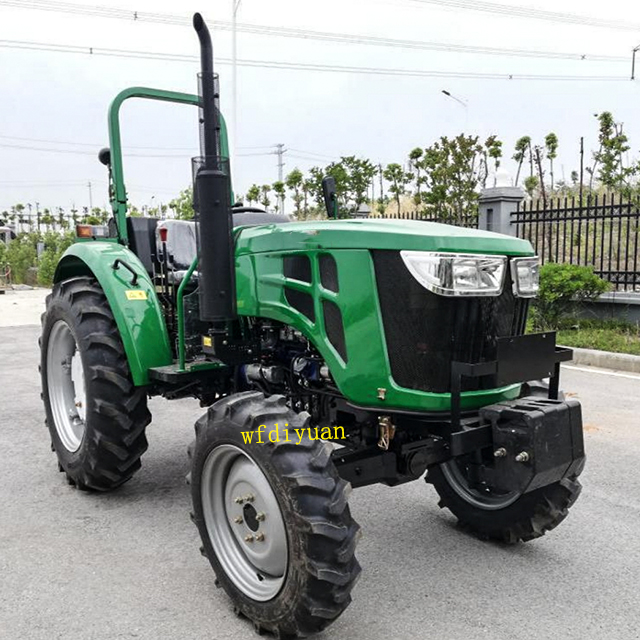

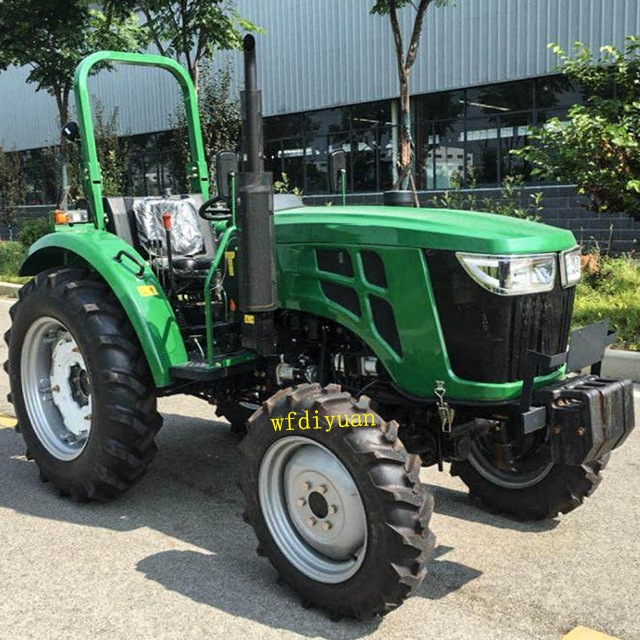

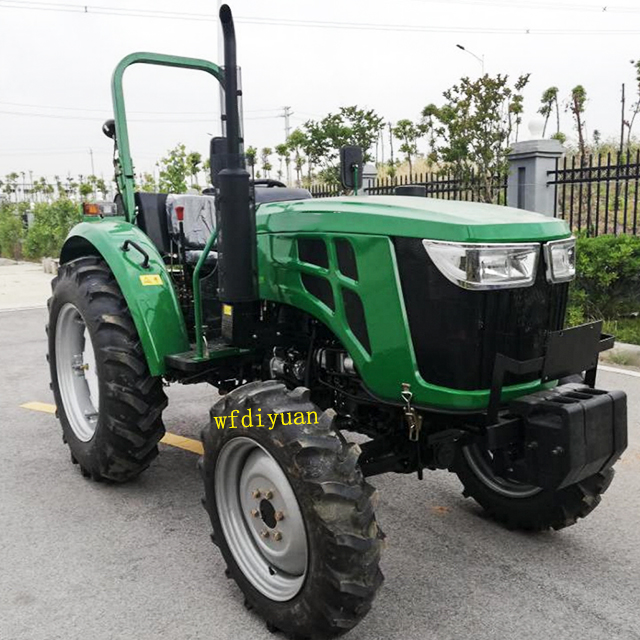

The DY704-N1 offers safety-frame and cab configurations, along with multiple optional tire sizes to suit different working conditions. A maximum theoretical speed of 33.92 km/h supports efficient movement between fields and farm locations.
AGRIDISOURCE supplies Chinese agricultural tractors for international agricultural machinery dealers, importers, and distributors. Contact us for pricing, configuration details, shipping options, and export quotations.
Weifang Diyuan Machinery Technology Co., Ltd. is a Chinese agricultural machinery supplier specializing in agricultural tractors and tractor spare parts for international markets. Under the AGRIDISOURCE brand, we support overseas importers, distributors, and agricultural machinery dealers with product information, configuration options, and export quotations.
