AGRIDISOURCE DY704-N 70HP 4WD Agricultural Tractor
| Item | Specification |
|---|---|
| Brand | AGRIDISOURCE |
| Model | DY704-N |
| Rated Horsepower | 70 HP |
| Drive Type | 4WD |
| Engine Model | 4D32ZT33/704 |
| Engine Manufacturer | Zhejiang Xinchai |
| Rated Engine Power | 52 kW |
| Engine Type | 4-cylinder, 4-stroke diesel |
| Intake System | Supercharged |
| Cooling System | Water-cooled |
| Rated Engine Speed | 2400 rpm |
| Transmission Gears | 8 Forward + 2 Reverse |
| Maximum Theoretical Speed | 36.01 km/h |
| Front / Rear Tires | 8.3-20 / 12.4-28 |
| Steering System | Full hydraulic steering |
| Hydraulic Outputs | 2 groups |
| Rear Suspension | Three-point suspension, Category II |
| PTO Speed | 540 / 720 rpm |
| Wheelbase | 1880 mm |
| Minimum Ground Clearance | 405 mm |
| Overall Dimensions (Safety Frame) | 3490 × 1545 × 2500 mm |
| Overall Dimensions (Cab) | 3490 × 1545 × 2545 mm |
| Service Mass (Safety Frame) | 2200 kg |
| Service Mass (Cab) | 2300 kg |
| Front / Rear Counterweights | 72 / 60 kg |

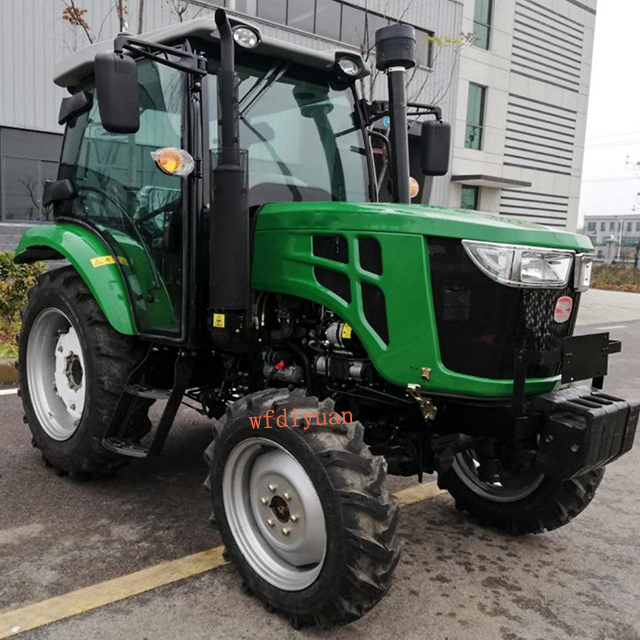

| Cab Configuration | Safety frame; optional simple cab |
The AGRIDISOURCE DY704-N is a 70HP 4WD agricultural tractor powered by a Zhejiang Xinchai 4D32ZT33/704 four-cylinder diesel engine rated at 52 kW. It features a supercharged, water-cooled engine, an 8-forward and 2-reverse transmission, full hydraulic steering, and two hydraulic output groups. The rear Category II three-point suspension and 540/720 rpm PTO support compatible agricultural implements. With 8.3-20 front tires and 12.4-28 rear tires, the DY704-N is suitable for general-purpose agricultural operations and is available with a safety frame or an optional simple cab.
Weifang Diyuan Machinery Technology Co., LTD is a Chinese supplier of agricultural tractors and tractor spare parts. Under the AGRIDISOURCE brand, we provide agricultural machinery solutions for farmers, importers, dealers, and distributors worldwide. Our product range includes 2WD and 4WD agricultural tractors, agricultural implements, and tractor spare parts.
