AGRIDISOURCE DY2204 220HP 4WD Agricultural Tractor
| Item | Specification |
|---|---|
| Brand | AGRIDISOURCE |
| Model | DY2204 |
| Rated Horsepower | 220 HP |
| Drive Type | 4WD |
| Engine Model | WP6G220E330 |
| Engine Manufacturer | Weichai |
| Rated Engine Power | 162 kW |
| Engine Type | 6-cylinder, 4-stroke diesel |
| Intake System | Turbocharged and intercooled |
| Cooling System | Water-cooled |
| Rated Engine Speed | 2200 rpm |
| Transmission Gears | 16 Forward + 8 Reverse |
| Maximum Theoretical Speed | 35.43 km/h |
| Front / Rear Tires | 16.9-28 / 20.8-38 |
| Hydraulic Outputs | 3 groups |
| Rear Suspension | Three-point suspension, Category III |
| PTO Speed | 540 / 1000 rpm |
| Wheelbase | 2760 mm |
| Minimum Ground Clearance | 510 mm |
| Overall Dimensions | 5360 × 2500 × 3245 mm |
| Minimum Service Mass | 6750 kg |
| Front / Rear Counterweights | 780 / 480 kg |
| Cab | Simple cab |

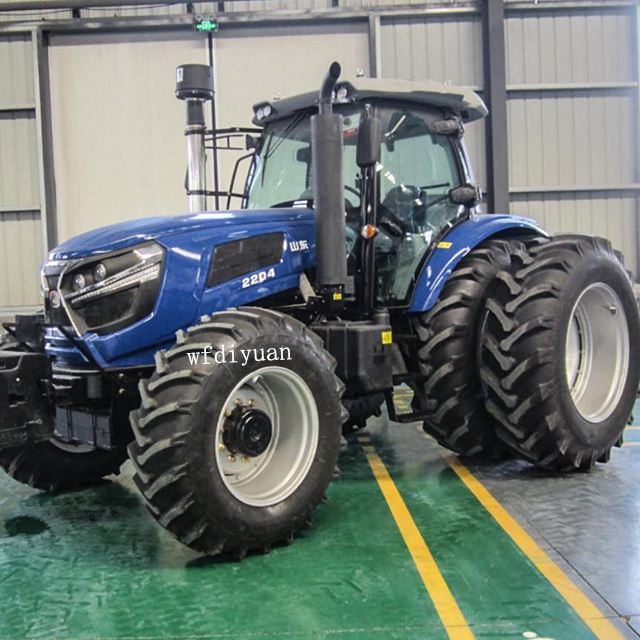

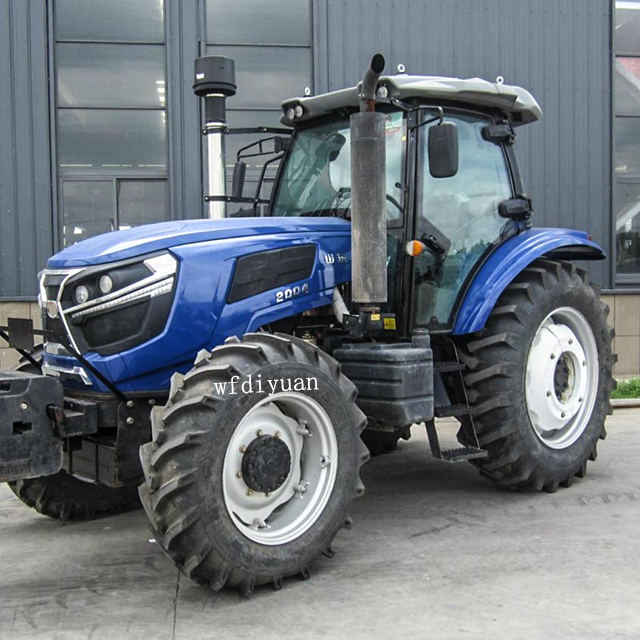

The AGRIDISOURCE DY2204 is a 220HP 4WD agricultural tractor powered by a Weichai WP6G220E330 six-cylinder diesel engine rated at 162 kW. It features a turbocharged and intercooled engine, a 16-forward and 8-reverse transmission, three hydraulic output groups, and a rear three-point suspension system. The 540/1000 rpm PTO supports a range of compatible agricultural implements. With 16.9-28 front tires, 20.8-38 rear tires, and a simple cab, the DY2204 is designed for general-purpose agricultural operations.
Weifang Diyuan Machinery Technology Co., LTD is a Chinese supplier of agricultural tractors and tractor spare parts. Under the AGRIDISOURCE brand, we provide agricultural machinery solutions for farmers, importers, dealers, and distributors worldwide. Our product range includes 2WD and 4WD agricultural tractors, agricultural implements, and tractor spare parts.
