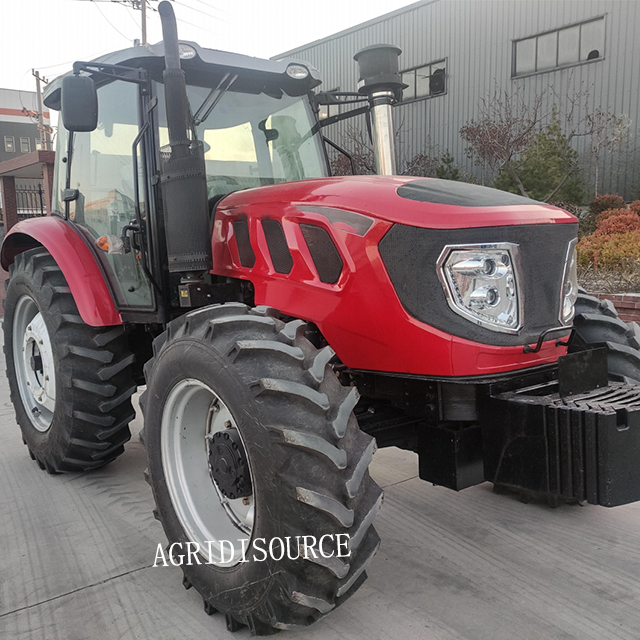

AGRIDISOURCE DY2004-B 200HP 4WD Agricultural Tractor
| Item | Specification |
|---|---|
| Model | DY2004-B |
| Brand | AGRIDISOURCE |
| Rated Power | 200 HP |
| Drive Type | 4WD |
| Application | General Agricultural Use |
| Engine Model | YC6J220-T301 |
| Engine Brand | Guangxi Yuchai |
| Engine Power | 147 kW |
| Engine Type | 6-Cylinder, Turbocharged, Intercooled, Water-Cooled |
| Transmission | Mechanical Transmission |
| Gears | 16 Forward / 8 Reverse |
| Maximum Design Speed | 35.83 km/h |
| Steering System | Full Hydraulic Steering |
| Tire Type (Front/Rear) | 14.9-28 / 18.4-38 |
| Wheelbase | 2630 mm |
| Minimum Ground Clearance | 470 mm |
| Operating Weight | 6450 kg |
| Overall Dimensions | 5050 × 2400 × 3000 mm |
| Cab Type | Simple Cab |
| Hydraulic Output | 3 Groups |
| Hydraulic Pressure | 17–18 MPa |
| PTO Speed | 760 / 850 rpm |
| Suspension | Rear Three-Point Suspension |
The AGRIDISOURCE DY2004-B is a 200HP 4WD agricultural tractor powered by a 147 kW six-cylinder Yuchai diesel engine with turbocharging and intercooling. It features a 16-forward and 8-reverse transmission, full hydraulic steering, a simple cab, and a rear three-point suspension system. With three groups of hydraulic outputs and PTO speeds of 760/850 rpm, this tractor is designed for general agricultural operations and fieldwork. It is suitable for farms, agricultural machinery dealers, and equipment importers seeking a high-power four-wheel-drive tractor.
Weifang Diyuan Machinery Technology Co., LTD is a Chinese supplier of agricultural tractors and tractor spare parts. Under the brand AGRIDISOURCE, we provide agricultural machinery solutions for farmers, dealers, importers, and distributors worldwide. Our product range includes 4WD agricultural tractors, agricultural implements, and tractor spare parts to meet different farming and market requirements.
