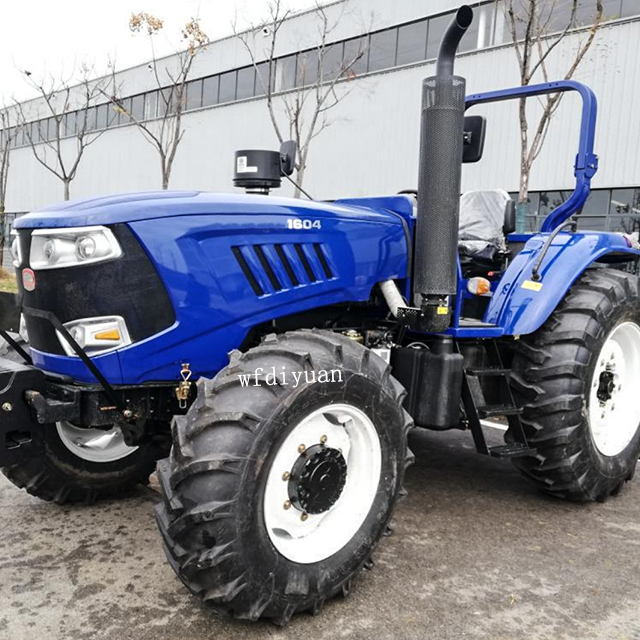

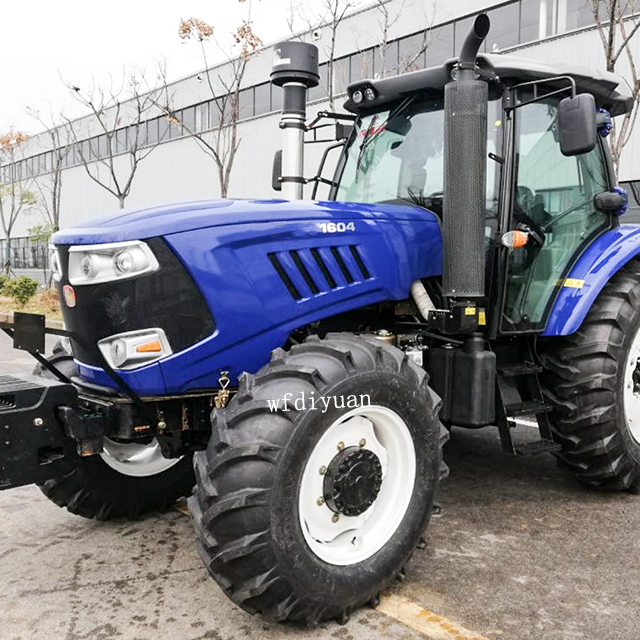

AGRIDISOURCE DY1604 160HP 4WD Agricultural Tractor
| Item | Specification |
|---|---|
| Model | DY1604 |
| Brand | AGRIDISOURCE |
| Rated Power | 160 HP |
| Drive Type | 4WD |
| Application | General Agricultural Use |
| Engine Model | WP6G160E330 |
| Engine Brand | Weichai |
| Engine Power | 118 kW |
| Engine Type | 6-Cylinder, Turbocharged, Intercooled, Water-Cooled |
| Transmission | Mechanical Transmission |
| Gears | 16 Forward + 8 Reverse |
| Maximum Design Speed | 39.96 km/h |
| Steering System | Full Hydraulic Steering |
| Tire Type (Front/Rear) | 14.9-24 / 18.4-34 |
| Wheelbase | 2610 mm |
| Minimum Ground Clearance | 450 mm |
| Operating Weight | 4900 kg (Safety Frame) / 5000 kg (Cab) |
| Overall Dimensions | 5045 × 2255 × 3015 mm (Safety Frame) |
| Hydraulic Output | 2 Groups |
| PTO Speed | 760 / 850 rpm |
| Suspension | Rear Three-Point Suspension |
The AGRIDISOURCE DY1604 is a 160HP 4WD agricultural tractor powered by a Weichai WP6G160E330 diesel engine. It features a 16-forward and 8-reverse mechanical transmission, full hydraulic steering, and a rear three-point suspension system. Designed for general agricultural operations, this tractor is suitable for plowing, cultivation, field preparation, and farm transportation. A safety frame or cab configuration is available to meet different operating requirements.
