| Item | Specification |
|---|---|
| Model | 804 Wheeled Tractor |
| Brand | AGRIDISOURCE |
| Horsepower | 80 HP |
| Tractor Type | Wheeled Tractor |
| Drive Type | Four-wheel Drive |
| Application | General Purpose Agriculture |
| Engine Model | 4C6-80C32 |
| Engine Manufacturer | Anhui Quanchai Power Co., LTD |
| Engine Type | 4-cylinder, four-stroke diesel engine |
| Intake Mode | Turbocharged |
| Rated Power | 59 kW |
| Rated Speed | 2400 r/min |
| Transmission | Mechanical Transmission |
| Gear | 12 Forward + 12 Reverse |
| Steering System | Full Hydraulic Steering |
| PTO Speed | 540/760 rpm |
| PTO Spline | 8 |
| Hydraulic Output | 2 Groups |
| Hydraulic Pump | CBAd1025 1006A |
| Suspension Type | Rear Three-point Suspension |
| Suspension Class | Category II |
| Tire Size | 8.3-24 / 11-32 |
| Overall Dimension | 4020×1820×2660 mm |
| Wheelbase | 2040 mm |
| Ground Clearance | 350 mm |
| Minimum Service Mass | 2800 kg |
| Maximum Speed | 31.37 km/h |
| Safety Frame Model | NW1004-301B.1 |
| Optional Cab | NW1004-301B |

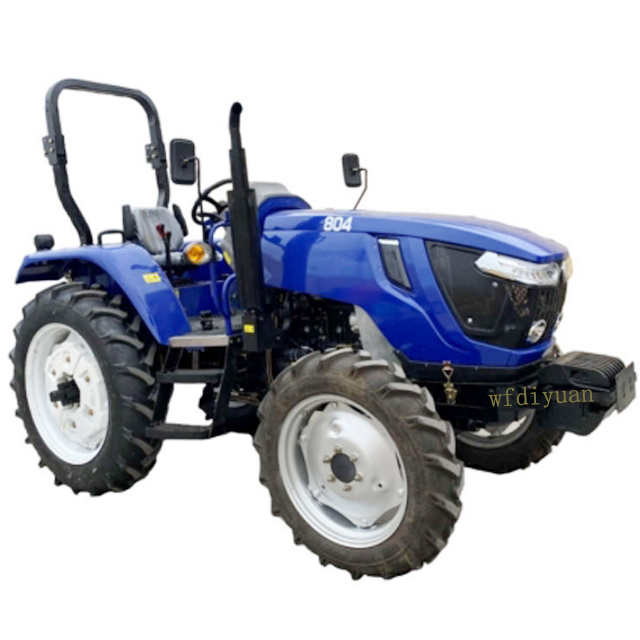

80HP 4WD Agricultural Tractor 804
AGRIDISOURCE 804 is an 80 horsepower four-wheel drive agricultural tractor designed for farming, transportation and general agricultural applications.
The tractor is equipped with a Quanchai 4C6-80C32 diesel engine, mechanical transmission system, full hydraulic steering and rear Category II three-point suspension. With strong power, reliable performance and excellent adaptability, it is suitable for plowing, rotary tilling, transportation and various agricultural operations.
The 804 tractor can be matched with different agricultural implements and provides a reliable solution for farmers, contractors and tractor dealers worldwide.
Main Features
- 80HP four-wheel drive agricultural tractor
- Quanchai diesel engine
- Turbocharged engine system
- 12F+12R mechanical transmission
- Full hydraulic steering
- Rear Category II three-point hitch
- PTO 540/760 rpm
- Compatible with rotary tillers, plows and trailers
- Suitable for global agricultural markets
