描述
| Item | Specification |
|---|---|
| Model | 704-Y Wheeled Tractor |
| Brand | AGRIDISOURCE |
| Horsepower | 70 HP |
| Tractor Type | Wheeled Tractor |
| Drive Type | Four-wheel Drive |
| Application | General Purpose Agriculture |
| Engine Model | WP3.2G72E440 (China IV) |
| Engine Manufacturer | Weichai Power Co., Ltd. |
| Engine Type | 4-cylinder, 4-stroke, liquid-cooled diesel engine |
| Rated Power | 51.5 kW |
| Rated Speed | 2400 r/min |
| Transmission | Mechanical Transmission |
| Gear | 8 Forward + 2 Reverse |
| Steering System | Full Hydraulic Steering |
| PTO Speed | 540/720 rpm |
| PTO Spline | 8 |
| Hydraulic Output | 2 Groups |
| Hydraulic Pump | CBN-E316 |
| Suspension Type | Rear Three-point Suspension |
| Suspension Class | Category I |
| Tire Size | 8.3-24 / 11-32 |
| Overall Dimension | 3750×1620×2450 mm |
| Wheelbase | 2010 mm |
| Ground Clearance | 410 mm |
| Minimum Service Mass | 2150 kg |
| Maximum Speed | 31.25 km/h |
| Safety Frame | BY-101K |
| Optional Cab | BY-104J Simple Cab |

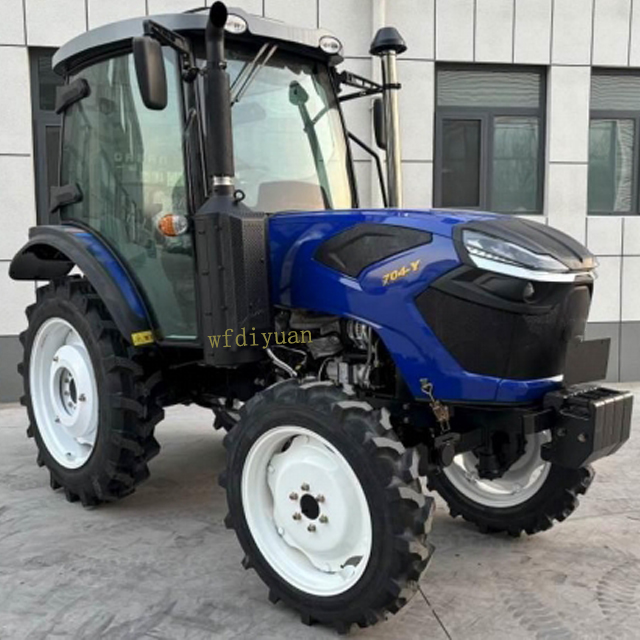

70HP 4WD Agricultural Tractor 704-Y
AGRIDISOURCE 704-Y is a 70 horsepower four-wheel drive agricultural tractor designed for farming, transportation and general agricultural operations.
The tractor is equipped with a Weichai WP3.2G72E440 China IV diesel engine, mechanical transmission, full hydraulic steering and rear three-point suspension system. It provides reliable power, flexible operation and good adaptability for different farming conditions.
Suitable for plowing, rotary tilling, transportation and matching with various agricultural implements.
Main Features
- 70HP four-wheel drive tractor
- Weichai China IV diesel engine
- Mechanical transmission system
- Full hydraulic steering
- Rear three-point hitch
- PTO 540/720 rpm
- Compatible with rotary tillers, plows and trailers
- Suitable for global agricultural markets
About Weifang Diyuan Machinery Technology Co., Ltd.
Weifang Diyuan Machinery Technology Co., Ltd. is a professional agricultural machinery supplier from China, specializing in agricultural tractors, tractor implements and tractor spare parts.
Located in Weifang, Shandong Province, China, we cooperate with professional tractor manufacturing factories to provide reliable agricultural machinery solutions for farmers, dealers and distributors worldwide.
Our products include different horsepower tractors, four-wheel drive tractors, agricultural implements and tractor spare parts. We provide complete solutions including tractor supply, configuration selection, spare parts support and export services.
With experience in agricultural machinery and international trade, we are committed to establishing long-term cooperation with customers around the world.
