描述
| Item | Specification |
|---|---|
| Model | 704-E Wheeled Tractor |
| Power | 70 HP |
| Tractor Type | Wheeled Tractor |
| Drive Type | Four-wheel Drive |
| Application | General Purpose |
| Frame Type | Frameless |
| Overall Dimension | 3550×1580×2330 mm (Safety frame top) |
| Wheelbase | 1905 mm |
| Minimum Ground Clearance | 410 mm |
| Minimum Service Mass | 2040 kg |
| Standard Counterweight | Front 44 kg / Rear 54 kg |
| Gear | 8 Forward + 2 Reverse |
| Main Gear Shift | 4 + 1 |
| Secondary Gear Shift | 2 |
| Maximum Speed | 38.19 km/h |
| Engine Model | YN28TDF4 (China IV) |
| Engine Manufacturer | Shandong Yunnei Power Co., LTD |
| Engine Type | Inline 4-cylinder liquid-cooled diesel engine |
| Rated Power | 51.5 kW |
| Rated Speed | 2400 r/min |
| Cooling System | Water Cooling |
| Air Filter | YKQ2027U5 |
| Steering System | Full Hydraulic Steering |
| Tire Size | 8.3-20 / 12.4-28 |
| Tire Quantity | 2 + 2 |
| Hydraulic Pump | CBN-E316 |
| Hydraulic Output | 2 Groups |
| PTO Speed | 540/720 rpm |
| PTO Spline | 6 |
| Safety Frame | BY-001K |
70HP 4WD Agricultural Tractor 704-E

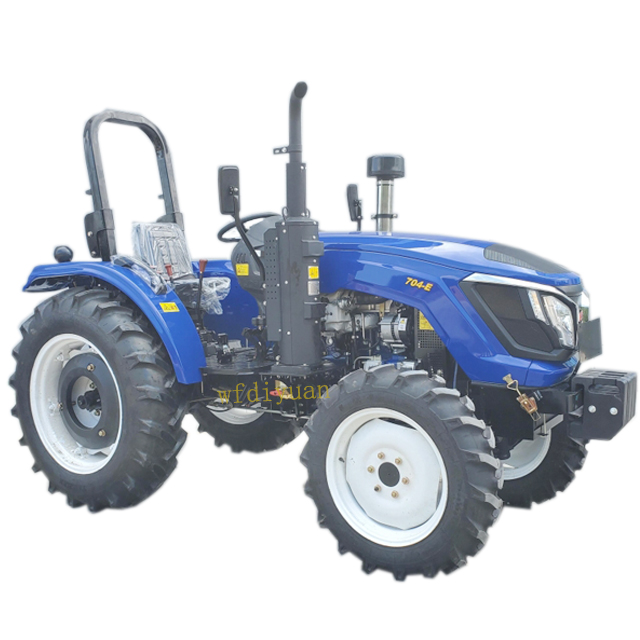

AGRIDISOURCE 704-E wheeled tractor is a 70 horsepower four-wheel drive agricultural tractor designed for general farming applications.
This tractor is equipped with a reliable YN28TDF4 China IV diesel engine, mechanical transmission system, full hydraulic steering system and rear three-point suspension system. It provides excellent performance for plowing, rotary tilling, transportation and various agricultural operations.
The 704-E tractor adopts a compact structure with strong adaptability. It is suitable for farms, agricultural contractors and tractor distributors in different markets.
Main Features
- 70 horsepower agricultural tractor
- Four-wheel drive system
- General-purpose tractor design
- Compact and strong structure
- Mechanical transmission system
- Full hydraulic steering system
- Rear three-point suspension
- Compatible with rotary tillers, plows, trailers and other implements
- Suitable for international agricultural markets
Engine Information
- Engine Model: YN28TDF4 (China IV)
- Engine Manufacturer: Shandong Yunnei Power Co., LTD
- Engine Type: Inline four-cylinder four-stroke liquid-cooled diesel engine
- Intake Mode: Supercharged
- Cylinder Number: 4
- Rated Power: 51.5 kW
- Rated Speed: 2400 r/min
Transmission System
- Transmission Type: Mechanical transmission
- Gear Combination: 8 Forward + 2 Reverse
- Main Gear Shift: 4 + 1
- Secondary Gear Shift: 2
- Maximum Theoretical Speed: 38.19 km/h
Hydraulic & PTO System
- Steering System: Full hydraulic steering
- Steering Control: Steering wheel
- Hydraulic Output Groups: 2
- Hydraulic Pump Model: CBN-E316
- Safety Valve Pressure: 18 ± 0.5 MPa
- PTO Spline Number: 6
- PTO Speed: 540/720 rpm
Suspension System
- Suspension Type: Rear three-point suspension
- Suspension Class: Category II
Safety Structure
- Safety Frame Model: BY-001K
- Safety Protection Type: Security framework

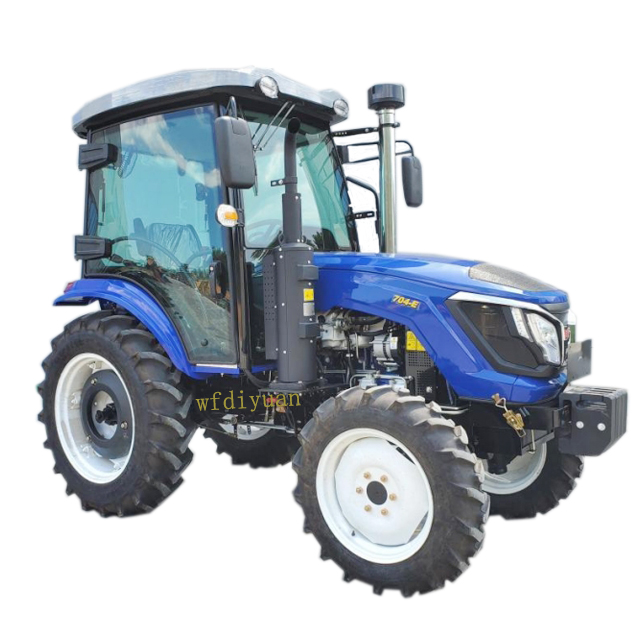

- Optional Cab Model: BY-004J
- Optional Cab Type: Simple cab
Applications
- Agricultural farming
- Land preparation
- Plowing
- Rotary tilling
- Transportation
- Farm machinery service
Why Choose AGRIDISOURCE
- Professional China agricultural machinery supplier
- Factory direct tractor supply
- Complete tractor and implement solutions
- Export service for global dealers and distributors
Contact AGRIDISOURCE for tractor quotation, technical specifications and dealer cooperation.
