220HP 4WD Agricultural Tractor DY2204 | China Tractor Manufacturer | AGRIDISOURCE
| Item | Specification |
|---|---|
| Model | DY2204 |
| Power | 220 HP / 162 kW |
| Tractor Type | Wheeled Tractor |
| Drive Type | Four-Wheel Drive |
| Application | General Purpose |
| Overall Dimensions | 5200 × 2360 × 3100 mm |
| Wheelbase | 2760 mm |
| Wheel Gauge | 1730 / 1870 / 1800–1900 mm |
| Minimum Ground Clearance | 480 mm |
| Minimum Service Mass | 6750 kg |
| Standard Counterweight | Front 240 kg / Rear 480 kg |
| Transmission | 16F + 8R |
| Main Gear Shifts | 4 |
| Secondary Gear Shift | (2+1) × 2 |
| Maximum Speed | 38.63 km/h |
| Engine Model | WP6G220E330 |
| Engine Manufacturer | Weichai (Weifang) |
| Engine Type | 6-Cylinder, 4-Stroke, Water-Cooled Diesel |
| Intake Mode | Supercharged Intercooled |
| Rated Power | 162 kW |
| Rated Speed | 2200 r/min |
| Steering System | Full Hydraulic Steering |
| Tire Size | Front 14.9-28 / Rear 18.4-38 |
| Hydraulic Pump | CBAd1032 |
| Hydraulic Outputs | 3 Groups |
| Hydraulic Safety Valve Pressure | 17 ± 0.5 MPa |
| PTO Spline | 8 |
| PTO Speed | 760 / 850 r/min |
| Suspension | Rear Three-Point Suspension |
| Suspension Class | Category III |
| Safety Protection | Simple Cab |
| Safety Protection Model | DY1204.45.001 |

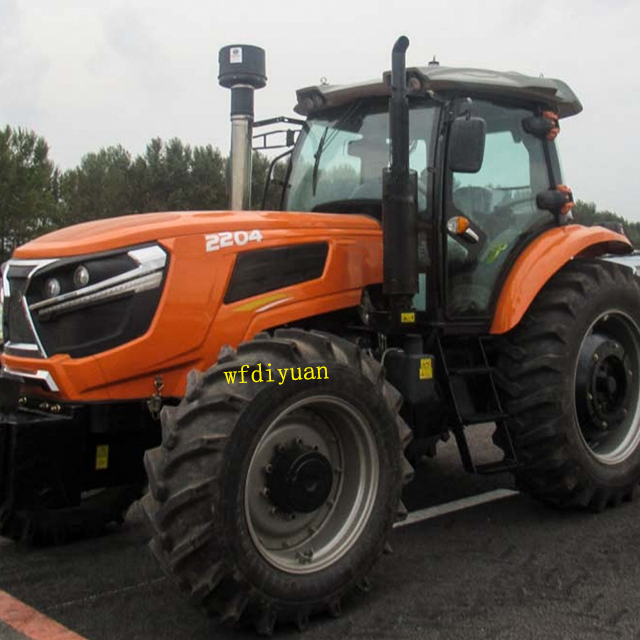

220HP 4WD Agricultural Tractor DY2204
AGRIDISOURCE DY2204 is a 220 horsepower four-wheel drive agricultural tractor designed for heavy-duty farming, field operations and transportation. It is equipped with a Weichai WP6G220E330 6-cylinder diesel engine with supercharged intercooling, a 16F+8R mechanical transmission, full hydraulic steering and rear three-point suspension. With 162 kW rated power, 14.9-28 front tires and 18.4-38 rear tires, the DY2204 is suitable for demanding agricultural applications and various large-scale implements.
About Weifang Diyuan Machinery Technology Co., Ltd.
Weifang Diyuan Machinery Technology Co., Ltd. is a professional agricultural machinery supplier from China, specializing in agricultural tractors, tractor implements and tractor spare parts.
Located in Weifang, Shandong Province, China, we cooperate with professional tractor manufacturing factories to provide reliable agricultural machinery solutions for farmers, dealers and distributors worldwide.
Our products include different horsepower agricultural tractors, four-wheel drive tractors, agricultural implements and tractor spare parts. We provide tractor supply, configuration selection, spare parts support and export services.
